○Rated voltage: AC 100~120V/220~240V 50/60Hz
○Rated power: according to customer requirements
○Maximum operating temperature: 100°C
Product Description
Targeted Functional Integration for Compact Water Dispensing Systems

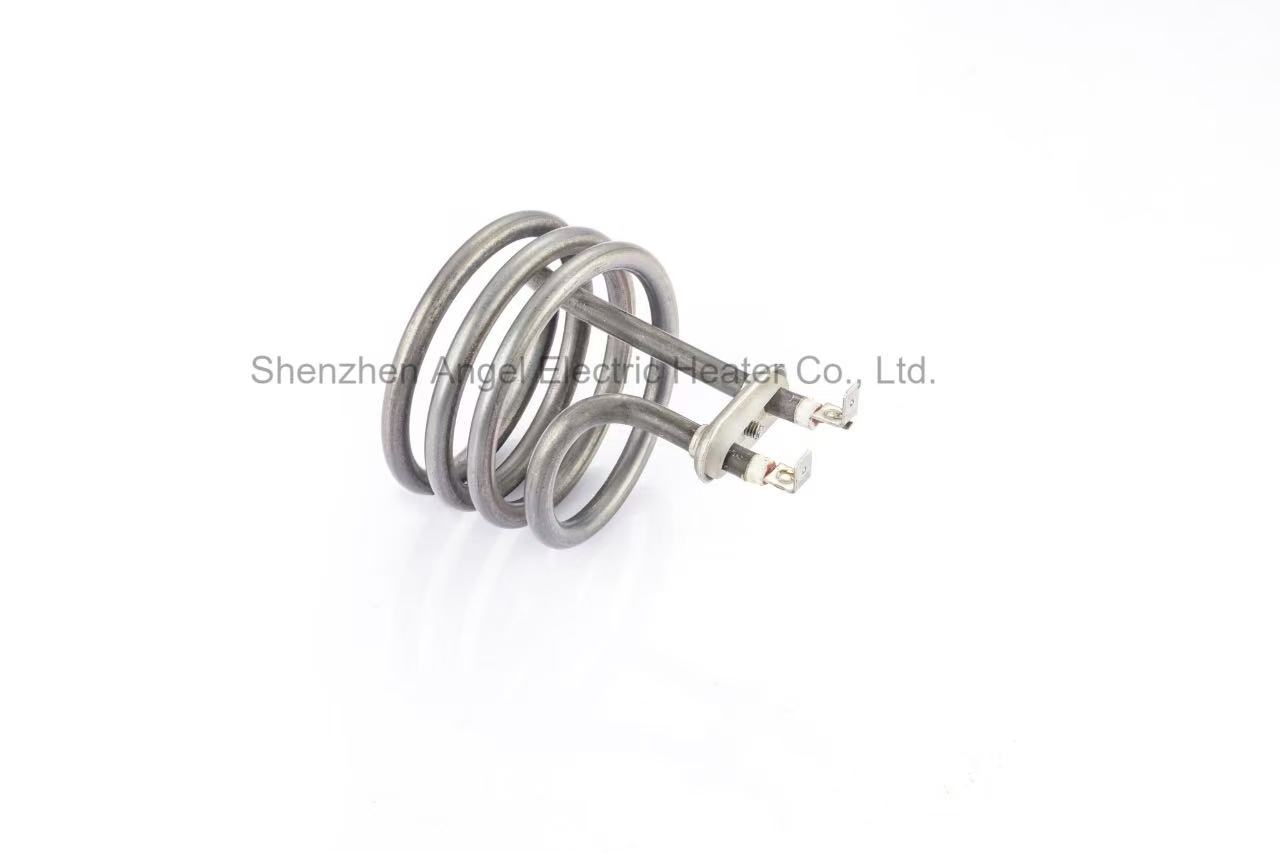

The immersion electric heating element is engineered specifically for integration within home and commercial water dispensers requiring precise, rapid heating of drinking water. Designed for equipment manufacturers, this component simplifies subsystem assembly while delivering stable thermal output. Its compact form factor suits embedded installations, facilitated by a few-turn spiral design and 90° folded terminals that ensure stable conductivity and minimal footprint. This product supports variable voltage ranges to accommodate global electrical standards, presenting a flexible solution for device developers and engineers focusing on water heating applications. By leveraging expertise from seasoned tubular heating elements manufacturers, this heating element meets demanding operational requirements in small-scale appliances.
Engineering Specifications and Material Quality for Reliable Heat Generation
Crafted primarily from high-grade SUS304 stainless steel, the electric heating element features corrosion resistance and high-temperature endurance critical for sustained immersion use, with options for advanced alloys such as SUS316L and alloy INC840 based on client specifications. The component incorporates an integrated insulation sealing system enhanced with ceramic insulators, achieving an IPX4 waterproof rating, thereby protecting against moisture ingress and ensuring operational safety in humid environments. Customizable power ratings and precise dimensional tailoring conform to customer drawings, enabling adaptable power density and thermal efficiency. The maximum operating temperature is firmly capped at 100°C, optimizing safety while providing reliable hot water supply through its tubular immersion heater design. Rooted in the expertise of established heating element manufacturers, this product combines material engineering and precision manufacturing for consistent performance.
Industry Applications Leveraging Efficient Hot Water Heating Solutions
This immersion electric heating element is widely adopted in applications including water dispensers, portable beverage devices, and compact heating modules for consumer and light commercial equipment. It addresses needs in rapid temperature control scenarios and hygienic hot water supply, supporting compliance with food-grade standards due to its stainless steel construction and smooth surface finish, which facilitate sanitation protocols. The element's integration capability supports prototyping and replacement purposes alike within small-scale heating systems, offering reliable, energy-conscious heating aligned with energy efficient electric heater paradigms. By providing adaptability across voltage and power specifications, the element underpins diversified product designs in appliance manufacturing ecosystems globally, reinforcing Shenzhen Angel Electric Heater Co., Ltd.’s commitment to quality and technical innovation in tubular heating elements manufacturers.
Product Advantages
Structural Robustness and Modular Integration Benefits
This immersion heating element’s structural design emphasizes compactness, corrosion resistance, and system compatibility. Utilizing SUS304 stainless steel as the default material ensures mechanical stability and longevity, while options like SUS316L offer enhanced chemical resistance for specialized industrial uses. The integrated insulation sealing structure, combined with IPX4 waterproof protection, enables safe installation in moisture-prone environments, reducing risk of electric leakage. The few-turn spiral tubing and 90° folded terminals facilitate seamless embedded assembly, minimizing spatial constraints and enhancing device modularity. As a product crafted by experienced heating element manufacturers, it supports various configurational requirements with customizable size and power, increasing adaptability within appliance production lines relying on tubular immersion heaters.
Optimized Thermal Performance and Operational Reliability
Designed for precise temperature control, this electric hot water heating element achieves consistent heat generation up to 100°C with high energy efficiency. Its smooth stainless steel surface assists in maintaining hygienic conditions and eases maintenance, essential for continuous operation in commercial or residential water dispensers. Stable conductivity from the terminal configuration reduces electrical noise and contact failures, enhancing system reliability. Furthermore, multi-voltage capability ensures compatibility with diverse market demands. This energy-conscious design supports commitment to reduced power consumption without compromising performance, embodying the qualities expected from advanced energy efficient electric heater technologies. These factors collectively enable reduced downtime and improved lifecycle management for equipment utilizing this heating solution.
Use Scenarios
Embedded Heating Solutions in Small Appliance Manufacturing
In the compact appliance manufacturing sector, precise heating components are critical for product differentiation and compliance with safety standards. This immersion electric heating element integrates efficiently within water dispensers and similar compact devices, performing as the key heat source enabling rapid water temperature elevation. Its corrosion-resistant stainless steel body and IPX4 waterproof rating ensure longevity in environments where humidity and direct water contact are common operational challenges. By facilitating embedded assembly via its spiral tubular design and insulated terminals, the element aligns with streamlined production workflows and modular device architecture favored by manufacturers. The technical design supports customization in power and dimensions, allowing tailored solutions for projects demanding reliable electric hot water heating elements in confined spaces.
Role in Prototype Development and System Validation for Beverage Heating
For R&D teams and engineers developing prototype beverage warming devices or testing new water heating modules, this immersion heating element offers stable performance and flexible integration options. Its construction allows repeated testing at controlled voltage and power settings, ensuring compliance with thermal safety parameters defined for consumer and commercial products. The IPX4 rating and food-grade materials align with regulatory demands for hygiene and operator safety in beverage applications. Consequently, it enables iterative validation of temperature control subsystems and heating efficiency benchmarks within experimental setups. By leveraging components from proven tubular heating elements manufacturers, product developers can mitigate risks associated with heating instability while achieving effective energy management consistent with energy efficient electric heater principles.
What materials are available for your water dispenser heating pipes?
We manufacture our water dispenser heating pipes primarily with SUS304 stainless steel for durability and corrosion resistance. Additionally, we offer customization with materials such as SUS316L, INC840, and INC800 to meet different application requirements, ensuring you receive the ideal electric hot water heating element for your product.
Can you customize the heating pipe’s power and size for my project?
Yes, we provide customization options for rated power, voltage, and size according to your technical drawings or specifications. This flexibility is integral to our service as leading heating element manufacturers, supporting your design requirements with tailored solutions.
How do you ensure safe operation in humid environments?
Our heating pipes feature an integrated insulation sealing structure and a waterproof rating of IPX4, which significantly reduces electric leakage risks in humid or water-exposed environments. Coupled with high-temperature ceramic insulation seals, this makes our tubular immersion heater both safe and reliable for water dispensers.
Can your heating pipes be easily installed or replaced in existing equipment?
Our compact few-turn spiral design and 90° folded terminals facilitate embedded installation and replacement in compact water dispensers or related appliances. We work closely with you to provide tubular heating elements manufacturers service tailored for efficient integration and maintenance.
