Structural Features:
Faster, More Efficient Heating
Space-Saving Sidewall Mounting
Safe, Durable Electrical Connection
Core Materials:
Food-Grade Sheath
High-Quality Internal Fill
Applications:
High-Power Commercial Fryers
Industrial Heating Equipment
Product Overview:

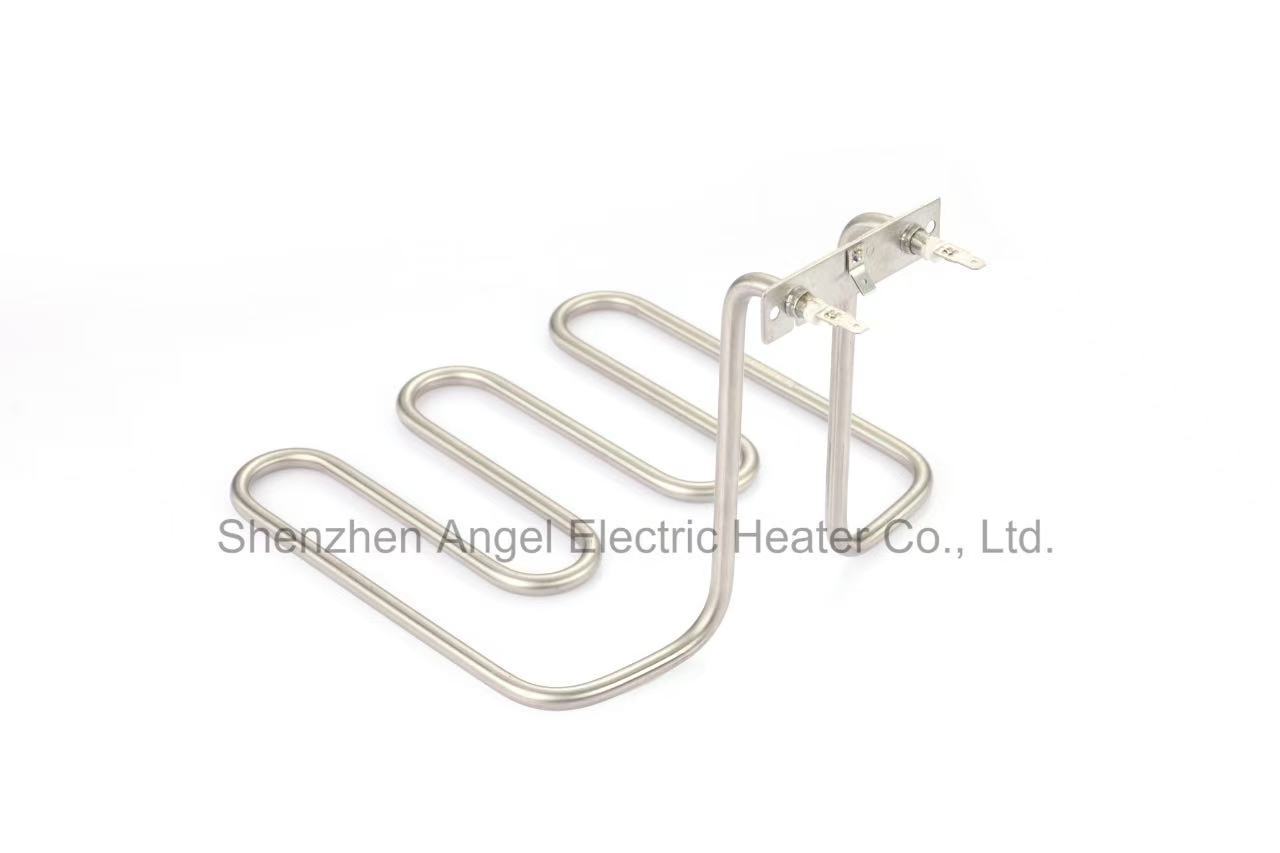

Engineered for high-capacity fryers requiring rapid heat-up, this heating element features a unique multi-loop configuration. It delivers high heating capacity and extended service life within compact installation spaces.
Structural Features:
Faster, More Efficient Heating: The heating element is formed into a compact serpentine (multi-loop) design, significantly increasing the effective heating surface area. This allows the element to achieve the required power output at a lower surface temperature, resulting in quicker, more uniform heating while reducing oil coking (charring) on the element surface — ultimately prolonging service life.
Space-Saving Sidewall Mounting: Installed vertically on the fryer sidewall via a side flange, the element leaves the fryer bottom completely unobstructed. This facilitates easy removal of food residue and is ideal for equipment where bottom mounting is impractical.
Safe, Durable Electrical Connection: A built-in cold section combined with high-temperature insulation protects the terminal area. This ensures heat is concentrated in the oil and does not transfer to the connection pins, safeguarding the wiring and enhancing operational safety.
Core Materials:
Food-Grade Sheath: Constructed from premium materials including Incoloy 800 and stainless steel 316L, offering excellent resistance to high temperatures and oil corrosion — perfectly suited for long-term exposure to cooking oil while meeting food hygiene and safety standards.
High-Quality Internal Fill: Filled with high-purity magnesium oxide (MgO) powder, providing superior electrical insulation and thermal conductivity for efficient, stable performance.
Applications:
High-Power Commercial Fryers: Ideally suited for large open fryers and pressure fryers in fast-food chains and central kitchens, meeting the heating demands of rapid, continuous cooking.
Industrial Heating Equipment: Also suitable for industrial applications requiring sidewall installation, such as large cleaning tanks and electroplating baths.
